FPGA三分频练习

三分频练习指的是将时钟三分频，比如原来时钟周期为10ns,现在需要的是30ns。由于不是2的整数倍，故需要计数下降沿和上升沿。

代码如下：

`timescale 1ns / 1ps

module div3(input clk,input rst,output div3_o);

reg[3:0] cnt;
reg rout;

always@(posedge clk or negedge clk)
begin
    if(!rst)
        begin
        cnt <=0;
        end
     else if(cnt==2)
        cnt <= 0;
      else
        cnt <= cnt+1;
end

always@(posedge clk or negedge clk)
begin
     if (!rst)
        rout<=0;
     else if(cnt==2)
        rout <= ~rout;
       else
        rout<= rout;
end

assign div3_o = rout;

endmodule

仿真代码：

`timescale 1ns / 1ps

module div3_tb( );

reg clk;
reg rst;
wire div3_o;

initial begin
clk = 0;
rst = 0;
#30
rst = 1;
end


div3 div3_inst(
.clk(clk),
.rst(rst),
.div3_o(div3_o)
);

always #5 clk =~clk;

endmodule

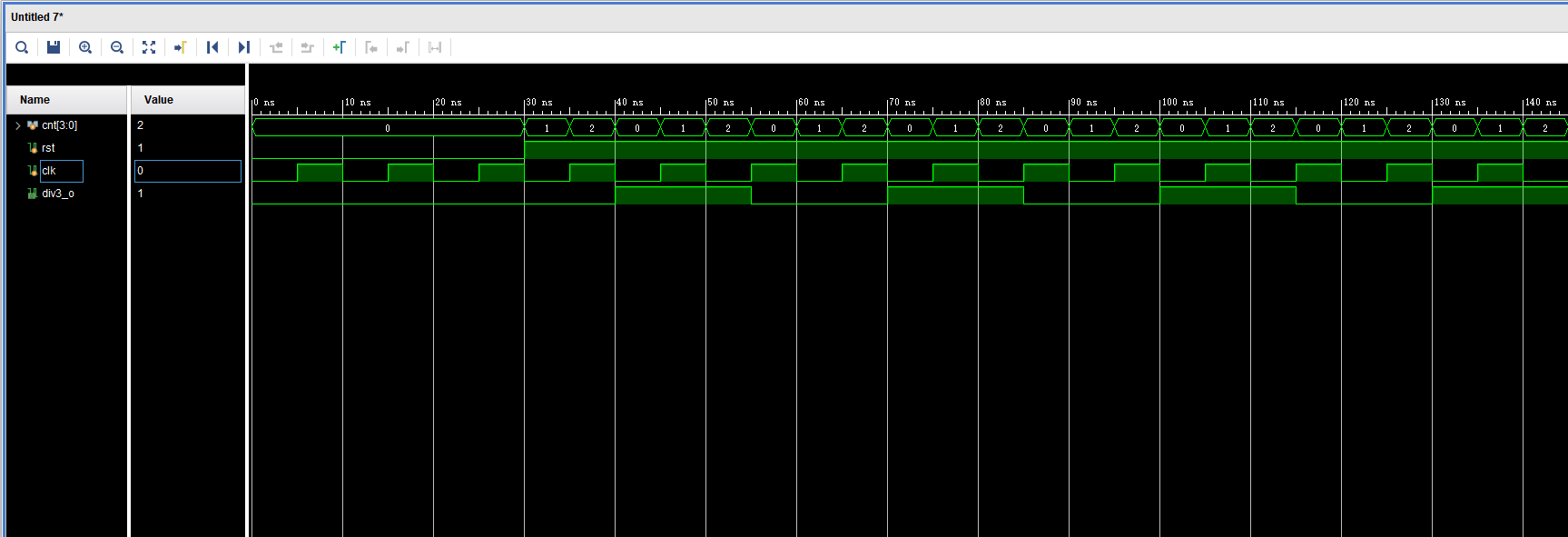

仿真结果如下：
